619540-1
Manufacturer:
TE Connectivity
Mfr.Part #:
619540-1
Datasheet:
Description:

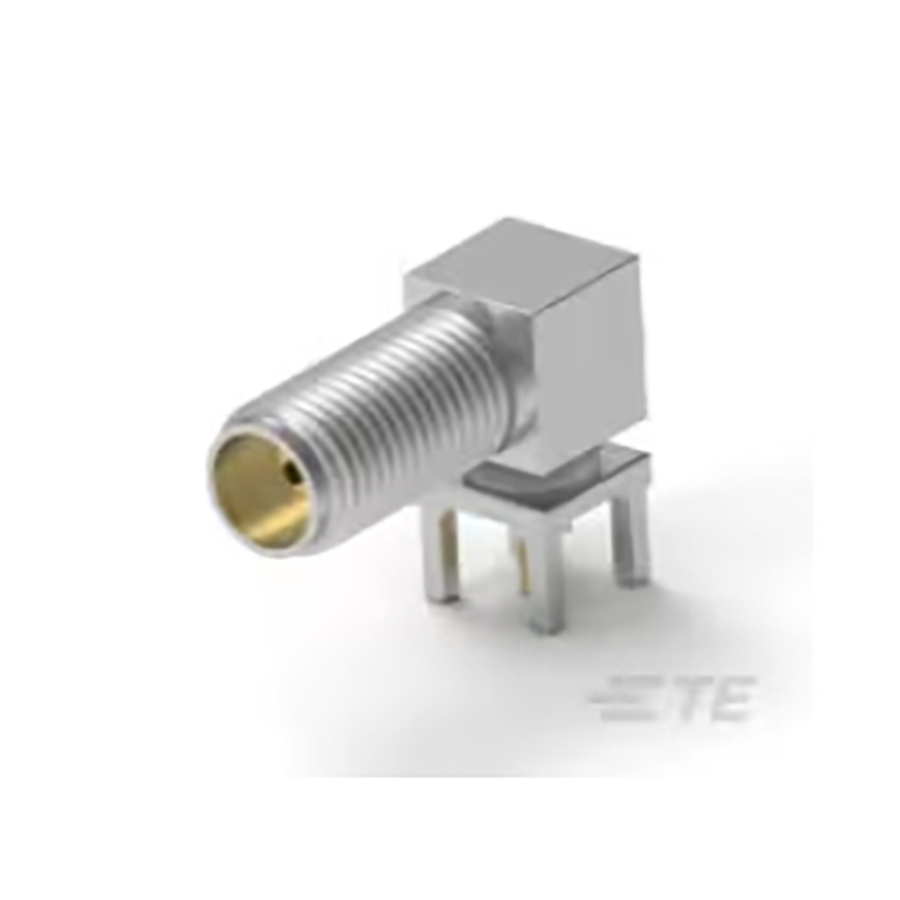

RF / Coaxial Connectors Through Hole 50 Ω
| Parameter | Value |
|---|---|
| Length | 19 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -65 °C |
| Height | 3.9 mm |
| Packaging | Bulk |
| Depth | 6.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 12 GHz |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Zinc |
| Max Frequency | 3 GHz |
| Number of Positions | 1 |
| Insulation Material | Polytetrafluoroethylene |
| Body Plating | Nickel |
| PCB Mounting Orientation | Right Angle |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
